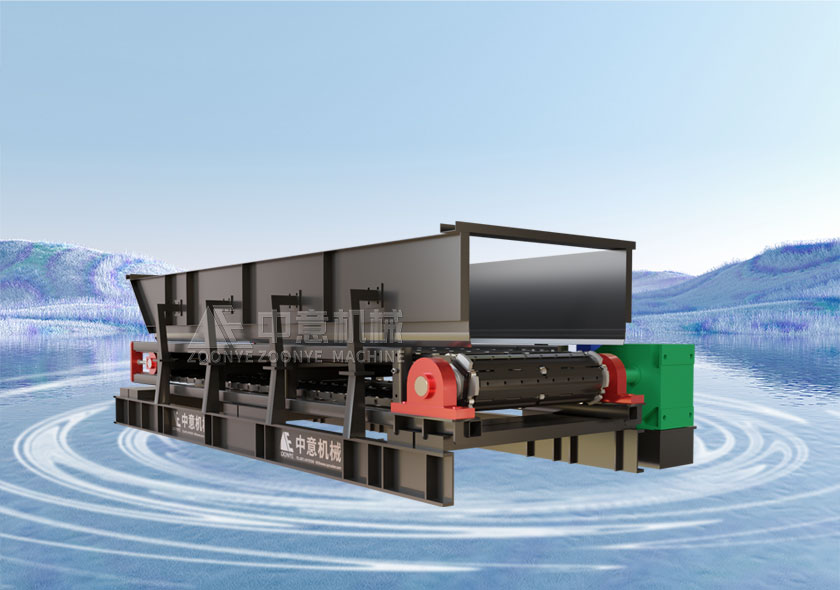

The BL series light chain plate conveyor is an auxiliary equipment in the mechanized screening system of garbage sorting. Its main function is to continuously and evenly feed materials from a certain equipment (hopper, silo, etc.) to the screening system. equipment or crushing equipment. Its layout is flexible and can complete horizontal, inclined and turning conveying on one conveying line. It is cost-effective, adopts standardized and serialized design, and is suitable for material transportation in various garbage sorting production lines. Various specifications can be processed and customized according to customer needs.

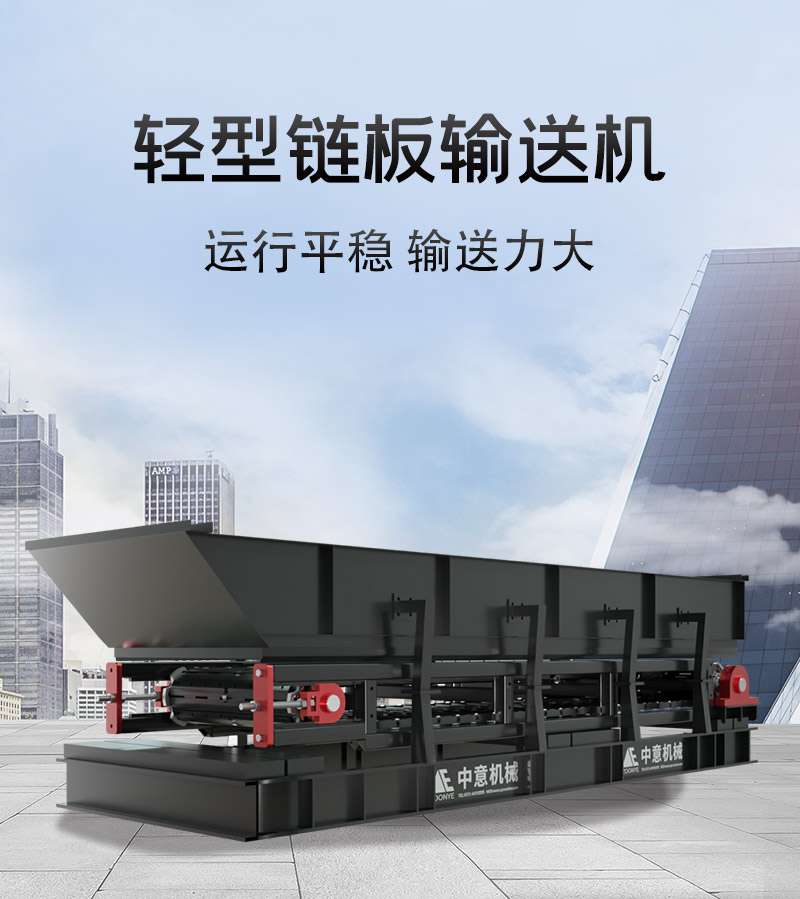

Light Chain Conveyor

The BL series light chain plate conveyor is suitable for short-distance conveying of block materials with a feed particle size of less than 300mm. The equipment can be installed horizontally or tilted, and its upward tilt angle is ≤20 degrees. Generally suitable for various block, granular and bulk materials.

Suitable For Various Material Transportation

Factory real shots

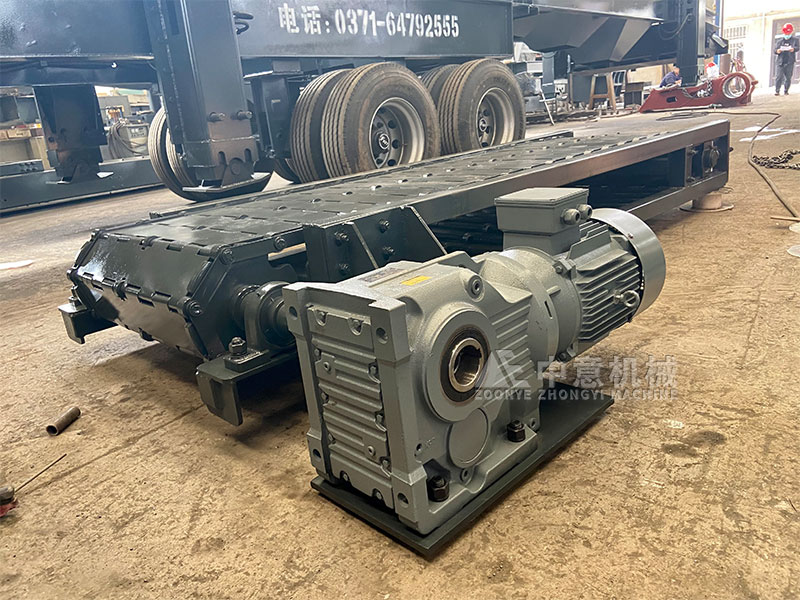

Real Shot Of Plate Chain Feeder Factory

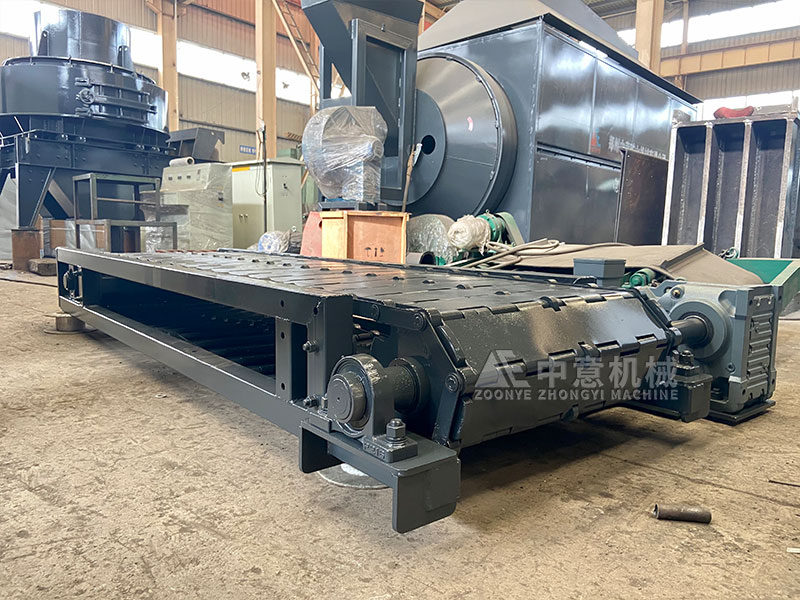

Zhongyi Machinery Plate Chain Feede

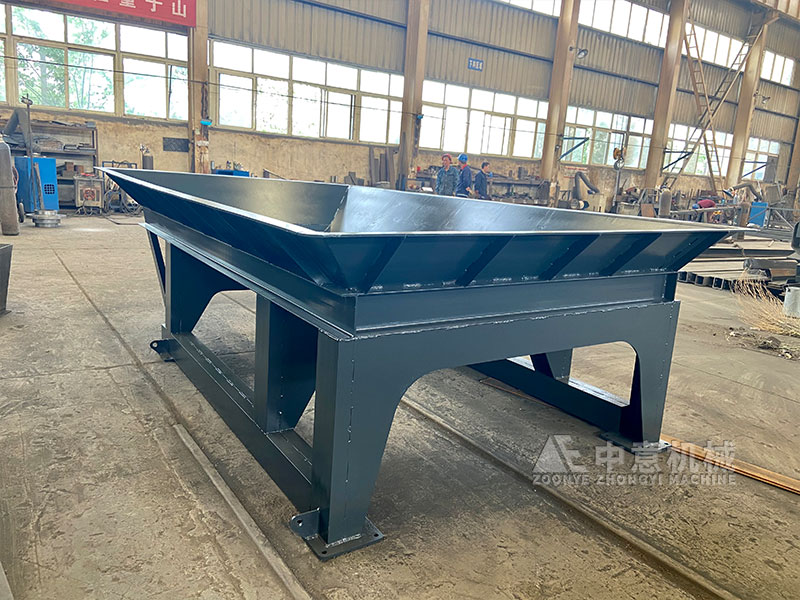

Plate Chain Feeder Customized On Demand

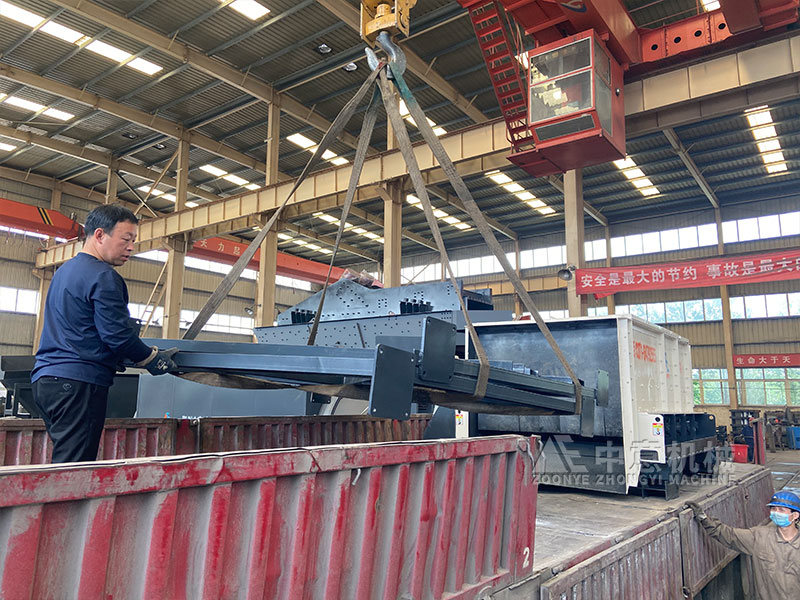

Plate Chain Feeder Factory Delivery

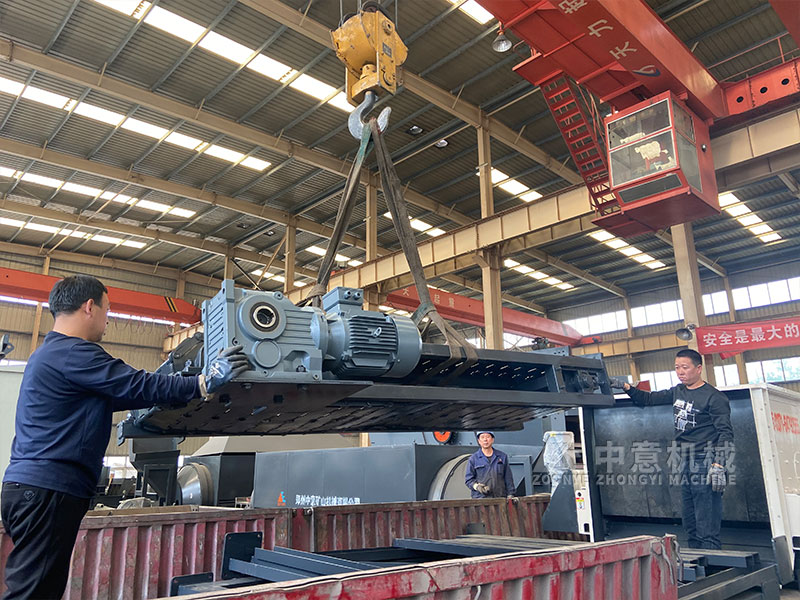

Plate Chain Feeder Is Being Loaded And Shipped

Product Advantages

1. The wearing parts are made of manganese steel alloy, which has high transportation efficiency and longer service life.

2. Use high-quality bearings with strong load-bearing capacity and more stable operation.

3. Using a speed-adjustable motor, the operating speed is adjustable

4. Suspension single-point floating support method reduces basic costs

Working Principle

The BL series light chain plate conveyor usually consists of a head device, a running part, a frame, a driving device, and a tail device. When the control circuit is started, the motor is energized, the inside of the motor converts electrical energy into kinetic energy under the action of the electromagnetic field, and the motor spindle starts to rotate. Then the main shaft transmits power to the head and tail gears through the reducer device. When the gears rotate, the traction chain begins to rotate with the gears, and at the same time drives the load-bearing chain to work, and the materials in the hopper begin to be transferred.

Technical Parameter
