The mobile jaw crusher + cone crusher, crushing and screening all-in-one machine is a crushing production line that can be walked at will. It solves the problem of limited customer engineering sites and poor terrain environment. It can climb and walk at will, and can be customized according to the actual needs of customers. Match different types of jaw crushers + cone crushers to meet customers' different output needs.

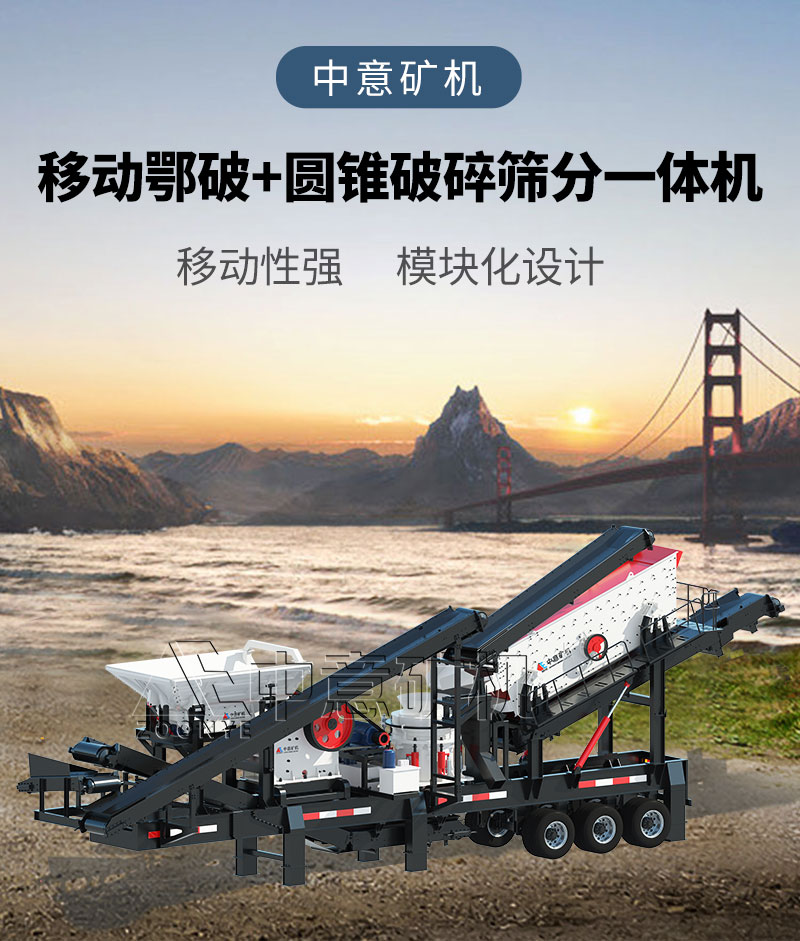

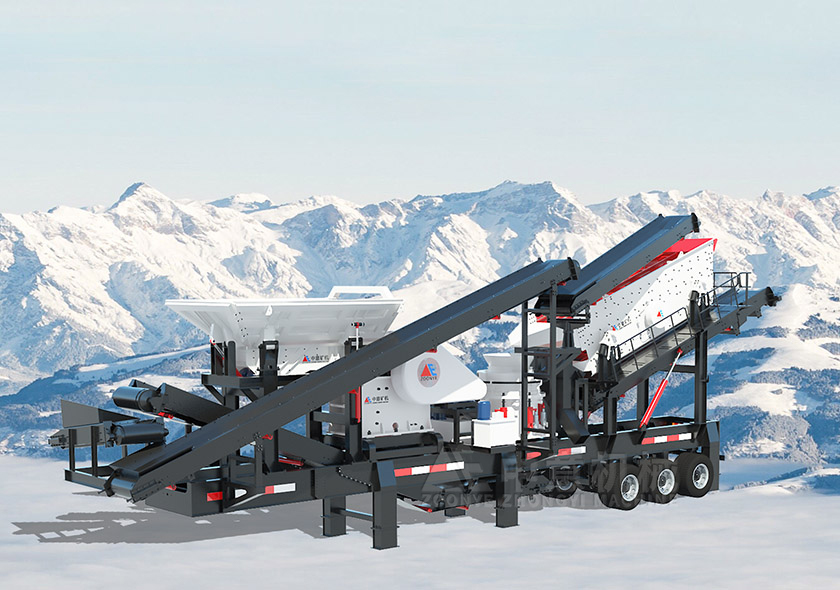

Mobile Jaw Crusher + Cone Crusher, Crushing And Screening Integrated Machine

This equipment is mainly used for coarse, medium and fine crushing of high-hardness ores, stones, and rocks. It also has relatively good results in fields such as construction waste. It can operate alone or with other series of mobile crushing stations. The main crushing equipment is jaw crusher and cone crusher, combined with feeder and vibrating screen. One or more crushers can be configured according to customer needs to form a mobile crusher that the customer needs. All-in-one gravel machine.

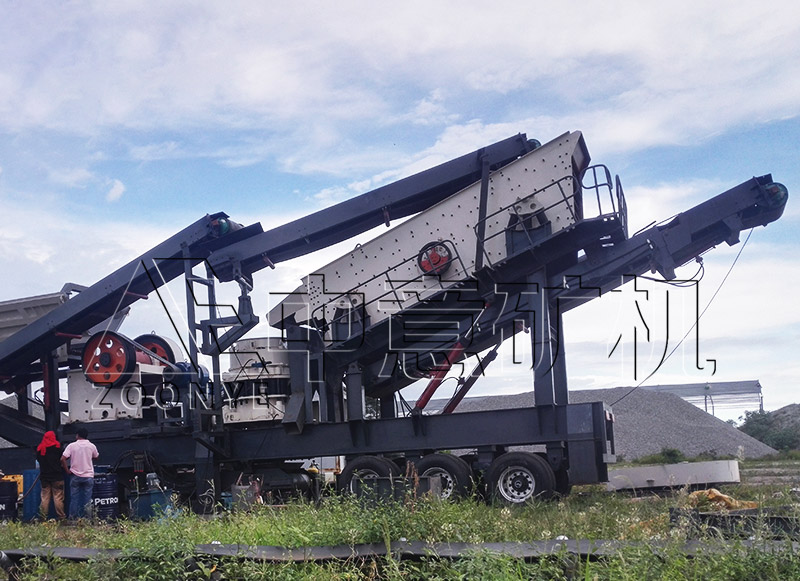

Mobile Jaw crusher + Cone Crusher, Crushing And Screening Pachine Production Site

Mobile Jaw Crusher + Cone Crusher, Crushing And Screening All-in-one Machine Crushes Many Types Of Materials

Advantages And Characteristics

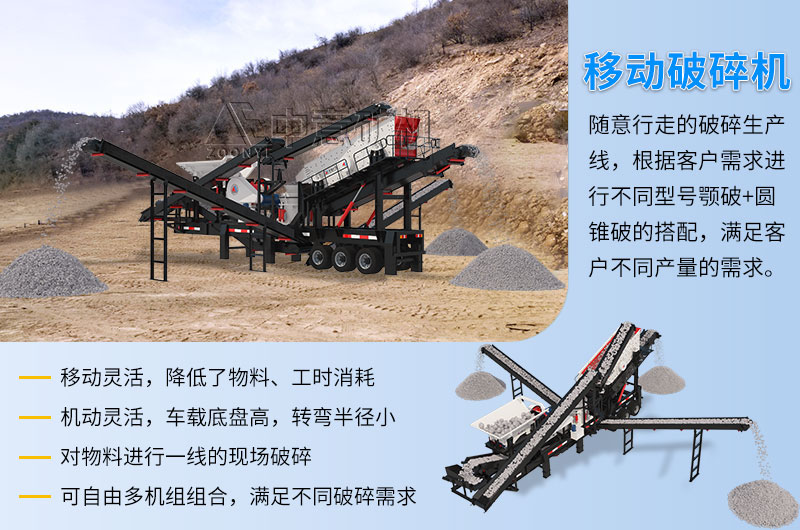

Advantages Of mobile Jaw crusher + Cone Crusher,Crushing And Screening Machine

1. High-performance jaw crusher, cone crusher and vibrating screen;

2. High-performance vibrating screen and belt conveyor integrated with the crusher;

3. Integrated vehicle-mounted installation of the screening belt conveyor and crusher;

4. The steering traction shaft facilitates road transportation and site penetration;

5. Vehicle-mounted installation support makes stationing the equipment at the site quick and convenient;

6. Integration of vehicle-mounted motor and control box.

Mobile Jaw Crusher + Cone crusher, Crushing And Screening Integrated Machine Manufacturer

Working Principle

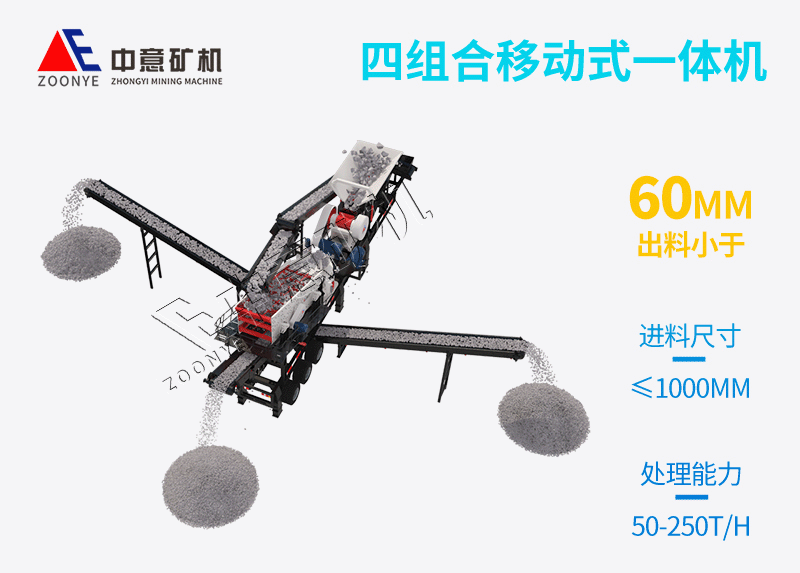

Working Principle Of Mobile Jaw Crusher + Cone Crusher, Crushing And Screening Machine

The mobile jaw crusher + cone crushing and screening machine also uses an extended body. The crushing equipment configured on this car is a jaw crusher and a cone crusher. The jaw crusher is used to achieve the first coarse crushing of the stone, and then the conveyor belt is used The crushed materials are sent to the vibrating screen for screening once, and the large pieces of material are screened out and dropped into the feed port of the cone crusher. They are crushed again using the cone crusher, and then returned to the vibrating screen via the patrol conveyor belt for another screening. . While screening, fine materials and other broken materials can be screened out and sent to different piles respectively. A vibrating screen can screen out four kinds of materials at the same time, including gravel, sand, coarse sand, etc.
