The exciter is one of the main components of vibration equipment and plays a decisive role in the effectiveness of vibration equipment. Our company absorbs domestic and foreign technologies to develop a new generation of thin oil lubricated vibrators. Compared with vibrators of the same specifications, it has a higher working rate and is easy to operate. Low maintenance cost, good lubrication and sealing performance. It is an ideal replacement for existing large and medium-sized vibrating screen vibration sources.

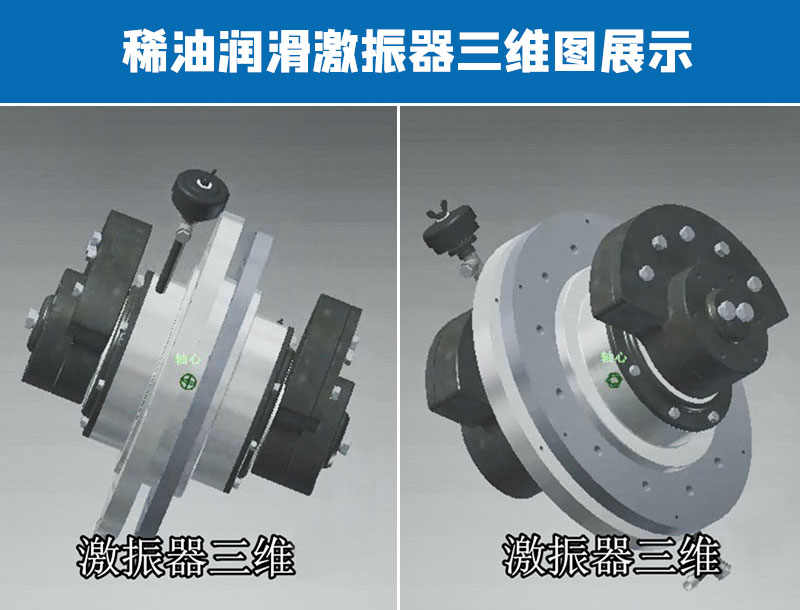

3D diagram of thin oil lubricated vibrator

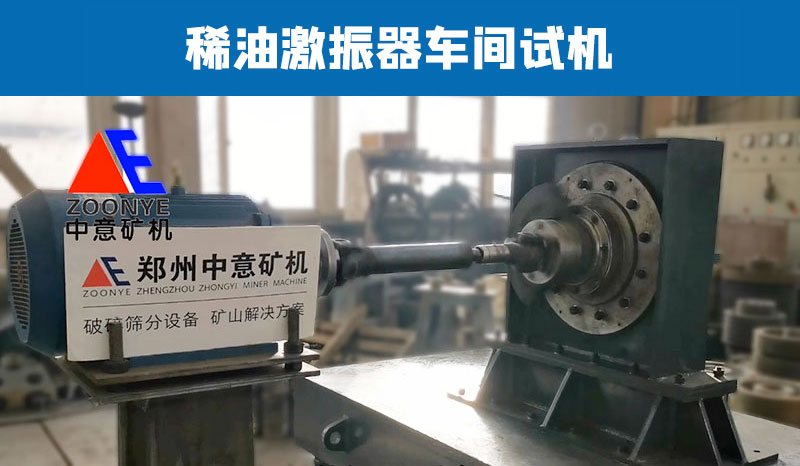

Thin oil exciter workshop test machine

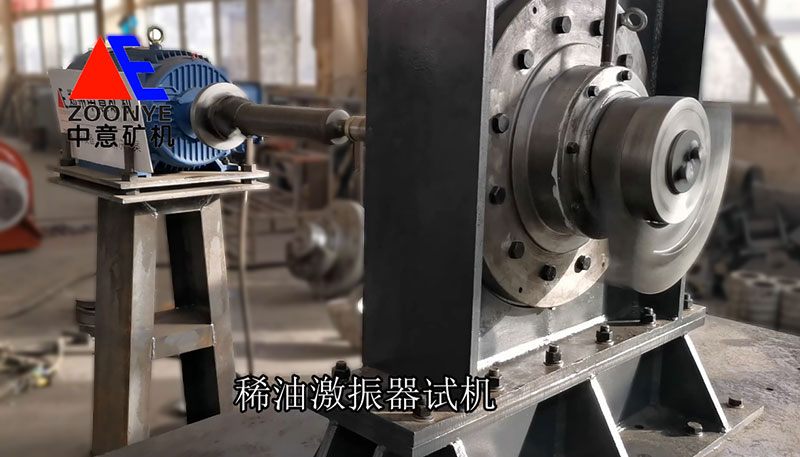

Vibrator workshop test machine

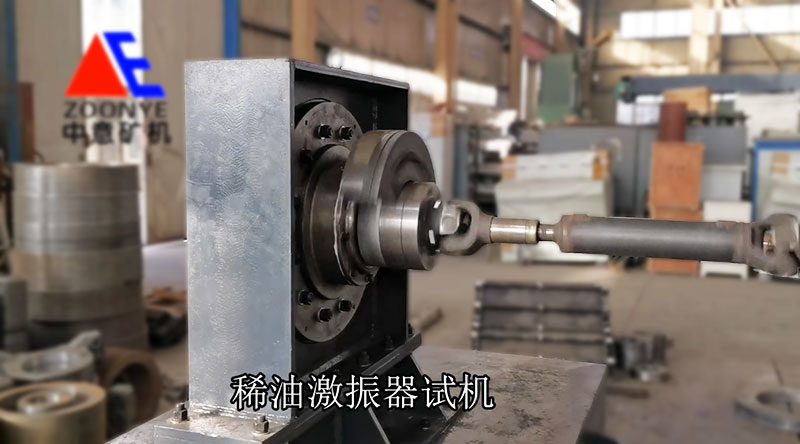

Zhongyi exciter test machine pictures

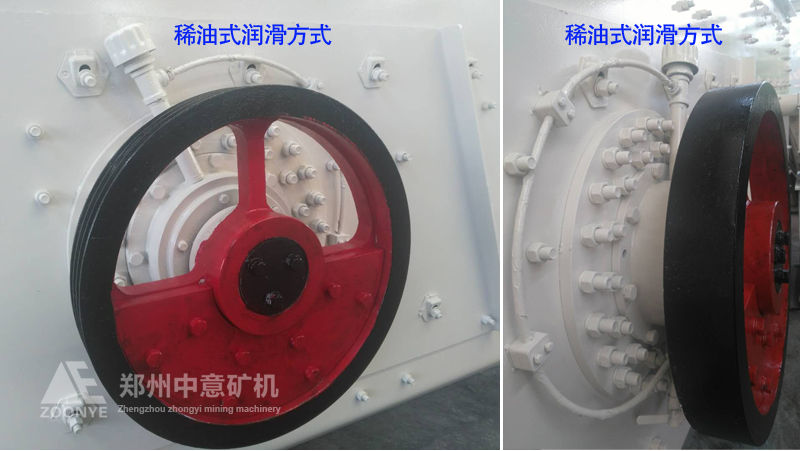

Thin oil lubrication method

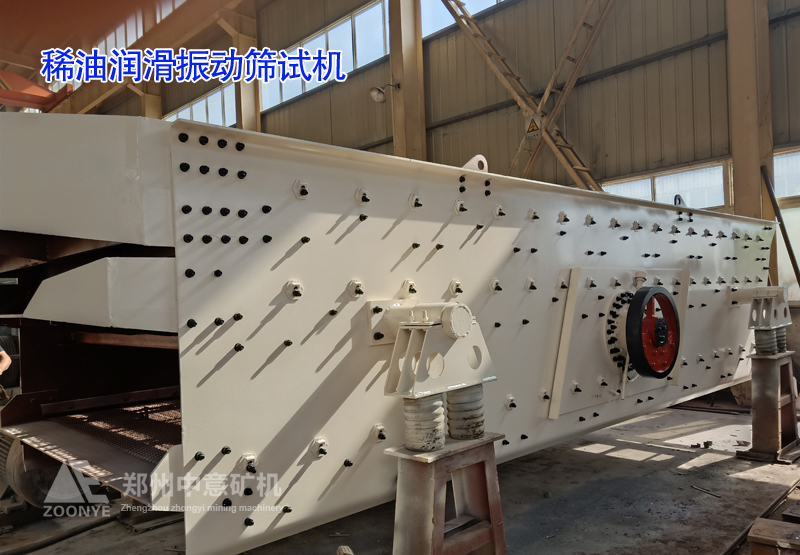

Thin oil lubricated vibrating screen workshop test machine

Advantages And Characteristics

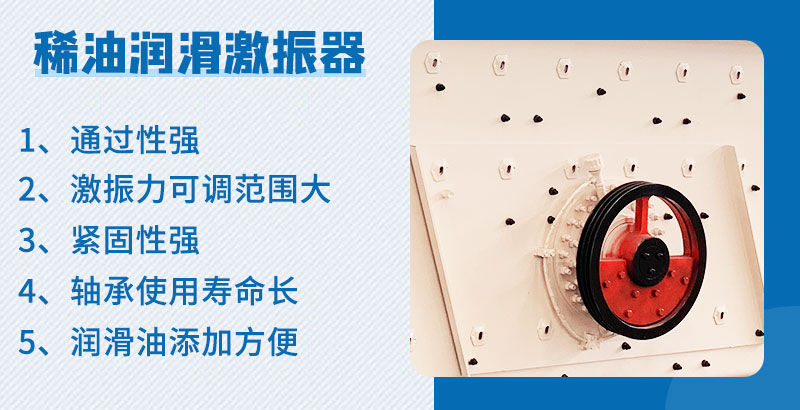

Advantages of thin oil exciter

1. Strong passability; quick installation, wide adjustable range of exciting force; strong fastening, using loosening nut.

2. The service life of the bearing is 2-3 times longer than that of ordinary types.

3. Lubricating oil is easy to add and can be replaced every 500 hours. There is no need to refuel every day, reducing downtime.

4. It is easier to start in low temperature environment (common grease type is difficult to start).

Working Principle

A new type of energy-saving vibrator that uses gears to circulate through the exciter shell to ultimately achieve the purpose of bearing lubrication. There is a thin oil station external to the vibrator. The oil is pressed to the upper port of the vibrator through the oil pump, and the oil is sprayed into the bearing chamber through the oil injection nozzle. The centrifugal force generated by the rotation of the bearing throws the oil into the oil return tank, and then the oil suction pump sucks out the excess grease in the exciter. The impurities are filtered through the filter, and after cooling, it is returned to the thin oil station to achieve the effect of recycling.

Technical Parameter
